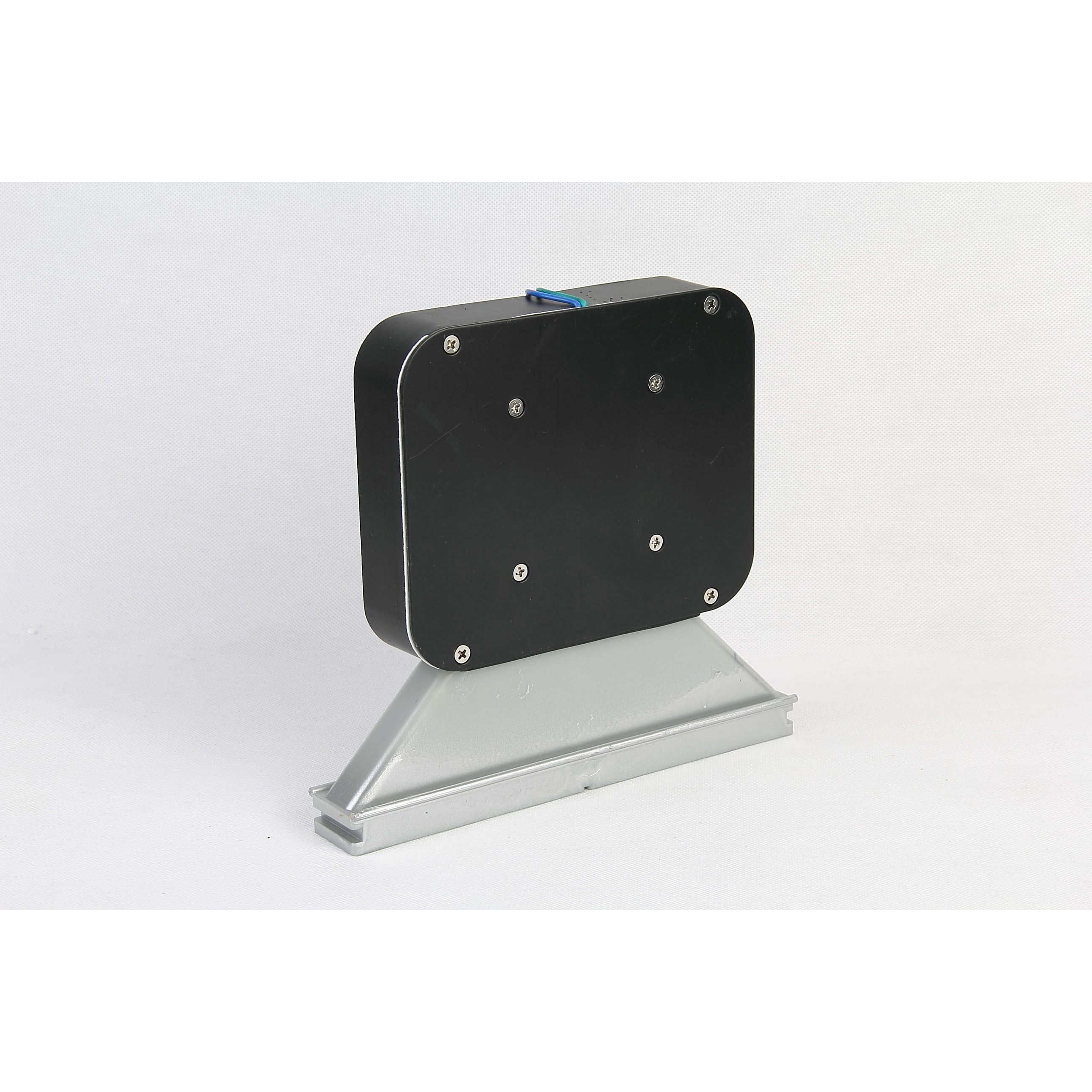

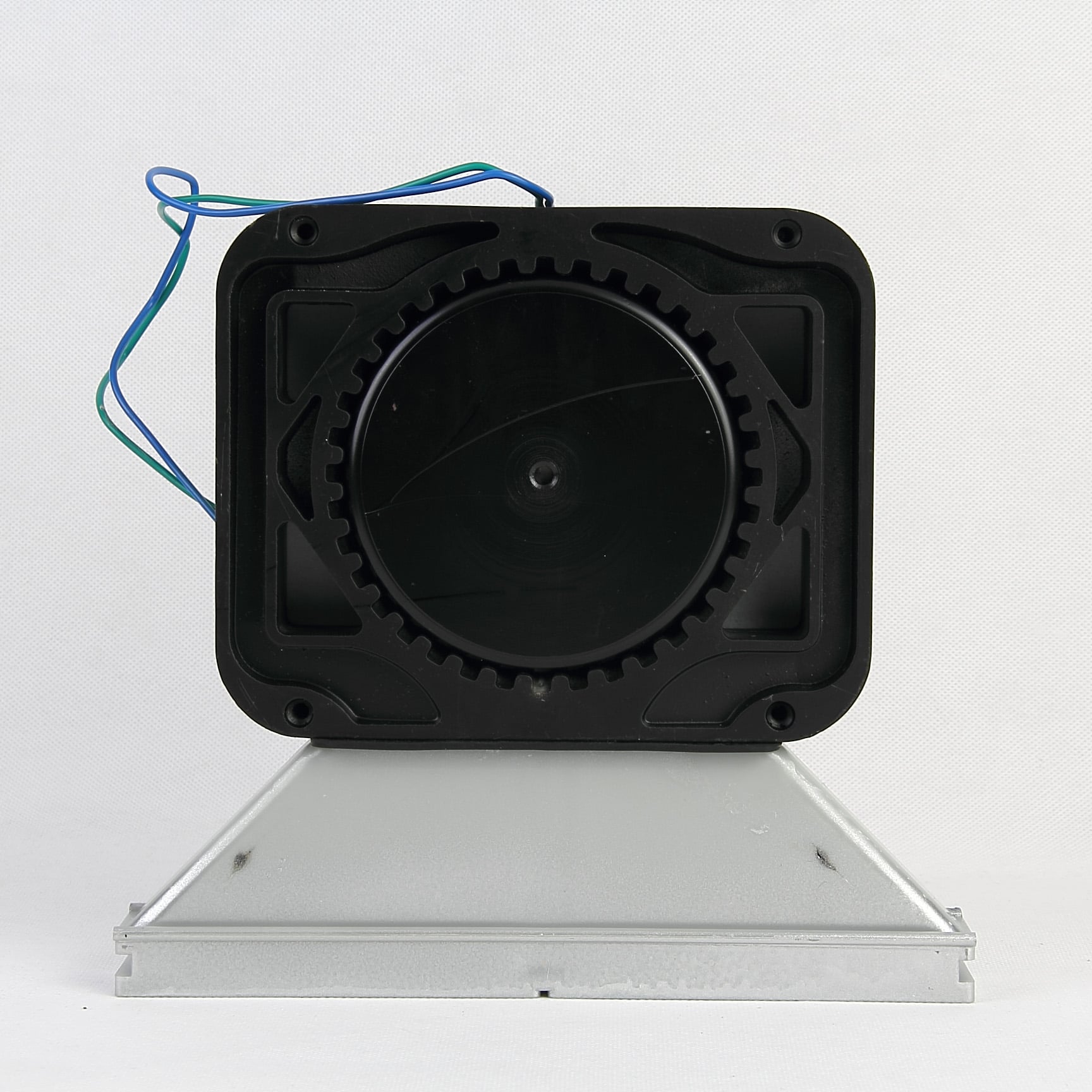

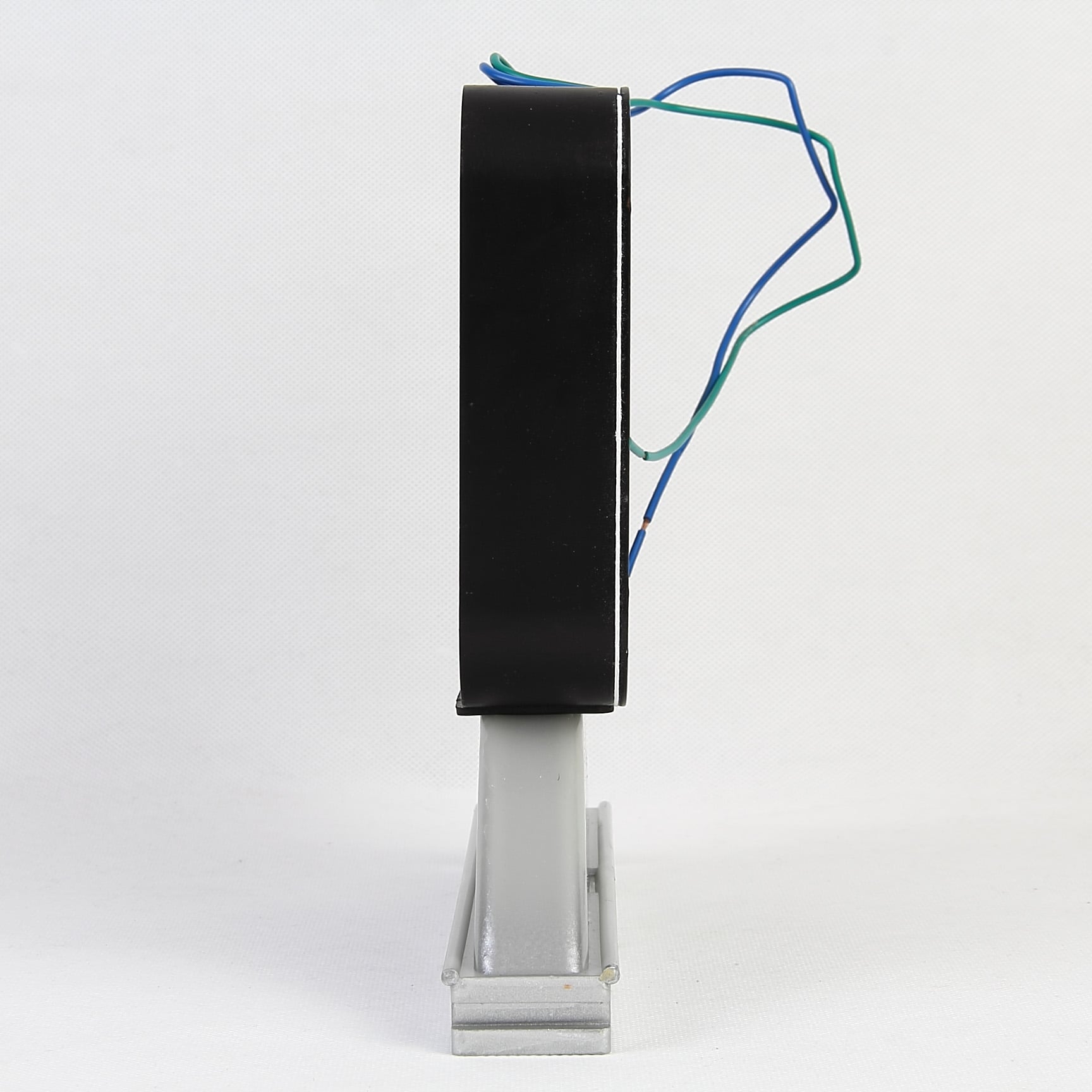

Slim 100W speaker

Ultra-compact design, lighter in weight, but still with a power of 100W, specially designed for emergency vehicle applications, can be fixed at the signal light railings below the vehicle's roof, to expand the sound coverage area in a smaller space. It is composed of an acoustic-tuned sound wave emitter component, made of nylon and glass fiber. Equipped with a high-flow magnetic compression driver made of neodymium magnets, a high mechanical strength diaphragm, and fully waterproof components. The product complies with S.A.E. 1849

  • Product Description
  • Related Products

Product Description

 Power supply: 33 volts

· Power: 100 watts

· Sound pressure: (Sound pressure level) 123 decibels @ 3 meters

· Resistance: DC 4.5 ohms

· Impedance: 11 ohms (+ 750 Hz)

· Operating temperature range: -10 to 80 degrees Celsius

· Heat dissipation method: Natural convection cooling system

2 Year Manufacturer Warranty

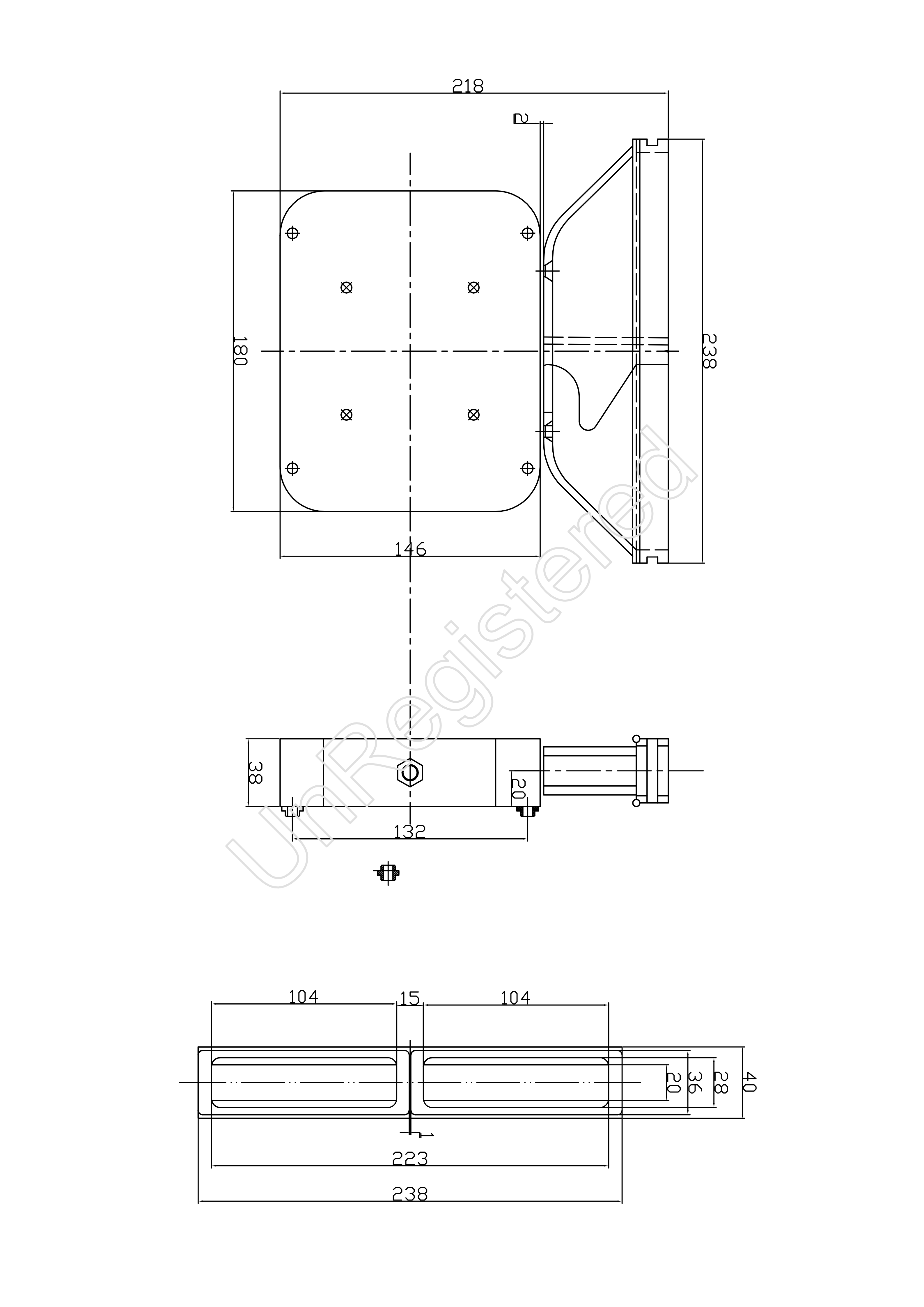

YH100-10 Model size_01.png
